Types of Commercial Gates: Selecting the Right System for High-Traffic Facilities

Choosing an industrial entry system involves more than matching a perimeter fence or picking an attractive design. For commercial properties, warehouses, and gated communities, gate selection is an engineering decision driven by vehicle throughput, structural load, and environmental factors such as thermal expansion.^[4]

When a gate fails during peak business hours, freight backs up onto public roads, employees cannot enter the yard, and facility security is immediately compromised. As noted by specialists like All Star Gate Repair Santa Clarita, understanding the distinct mechanical advantages of each commercial gate style helps facility managers select hardware that prevents unexpected downtime.

The 6 Primary Types of Commercial Gates

Commercial entry systems fall into six main categories, each built to address specific driveway widths, cycle frequencies, and physical property boundaries.

1. Commercial Swing Gates

Commercial swing gates operate on heavy structural hinges attached to reinforced steel posts, swinging inward or outward like a standard door. They can be installed as single panels or dual bi-parting setups.^[1]

• Best for: Properties with limited side-fence storage space where driveway depth allows vehicles to queue safely away from the swing arc.
• Space requirement: Requires clear depth equal to the radius of the gate leaf.
• Operational advantage: Compact physical footprint along fence lines, though they face higher wind resistance and hinge stress under continuous cycling.

2. Commercial Slide Gates

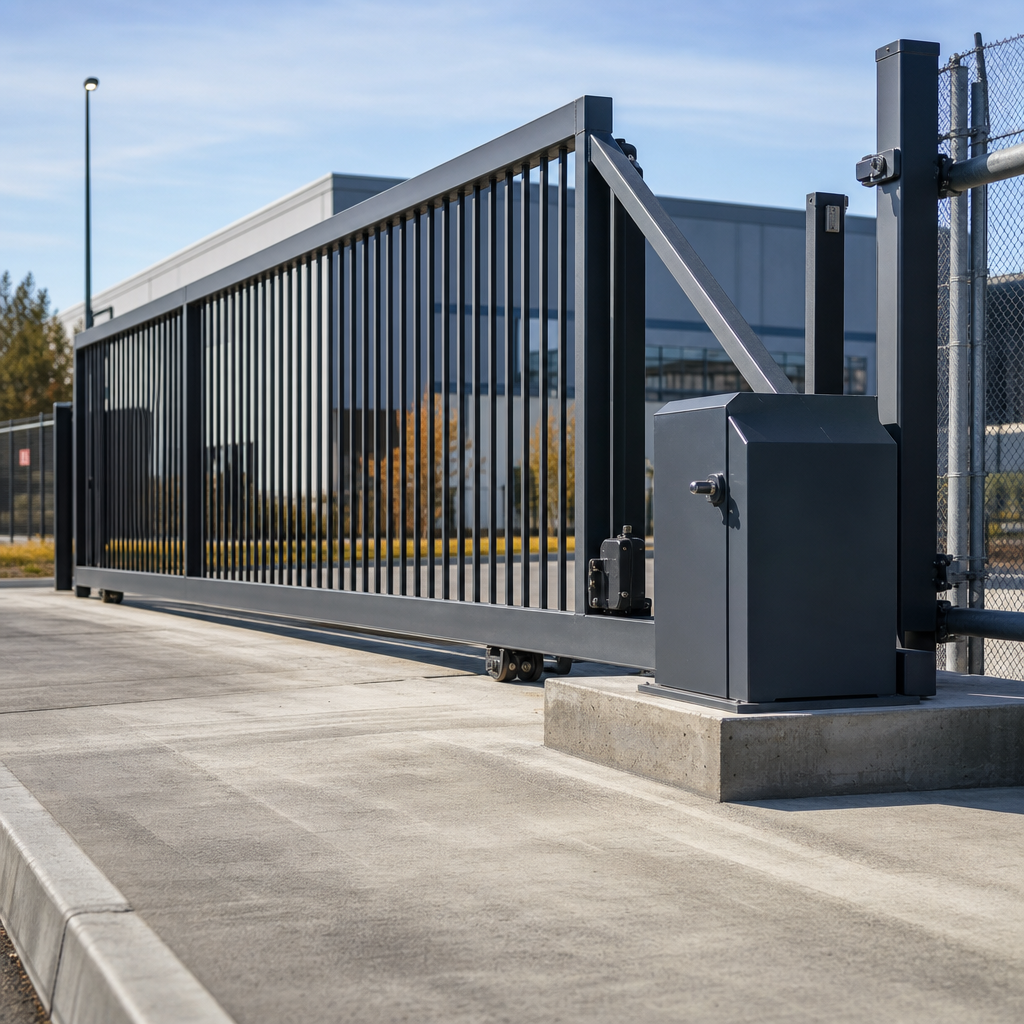

Slide gates roll along a steel track anchored directly into a footing across the driveway. The weight of the gate panel rests directly on wheels, while upper guide rollers hold the top rail vertical.^[2]

• Best for: Wide industrial openings where cantilever counterbalance overhang would be physically impractical.
• Space requirement: Needs lateral storage space along the fence line equal to the driveway opening plus clearance for guide hardware.
• Operational advantage: Capable of supporting heavy steel weights at a lower hardware cost than cantilever frames, provided the track is maintained and cleared regularly.

3. Commercial Cantilever Gates

Cantilever gates slide horizontally across an opening without contacting the ground across the driveway span. Instead, the gate panel is suspended using an extended counterbalance section supported by heavy-duty posts and internal roller truck assemblies.^[3]

• Best for: Facilities with uneven driveways, gravel yards, and areas where dirt, snow, or debris would foul a ground track.
• Space requirement: Requires extended lateral run space along the fence line to accommodate the counterbalance tail.
• Operational advantage: Reduced friction on the driveway surface and no exposed lower tracks that require daily sweeping or clearing.

4. Commercial Vertical Lift Gates

Vertical lift gates raise the entire gate panel straight up between two structural support towers, moving vertically above the driveway opening.^[5]

• Best for: High-security facilities, freight terminals, and urban properties with zero lateral slide room and steep driveway slopes.
• Space requirement: Minimal horizontal footprint, but vertical overhead clearance must accommodate full-height commercial trucks.
• Operational advantage: Fast cycle speeds and complete immunity to ground debris or lateral space restrictions.

5. Commercial Vertical Pivot Gates

Vertical pivot gates use a motorized balance assembly to rotate the gate panel upward on a single side post, pivoting out of the roadway path.

• Best for: Facilities with restricted lateral run space, roadside obstacles, or uneven terrain.
• Space requirement: Compact horizontal footprint requiring overhead clearance along the pivot arc.
• Operational advantage: Reliable operation in challenging conditions without ground tracks or large side clearances.

6. Commercial Bi-Folding Gates

Bi-folding (trackless speed) gates consist of panels hinged together that fold back onto each other as they open. Driven by mechanical linkages, they open and close significantly faster than standard slide or swing systems.

• Best for: Parking garages, distribution centers, emergency response bays, and secure transit hubs handling high traffic volumes.
• Space requirement: Requires a fraction of the swing radius needed by traditional swing gates and zero lateral run space.
• Operational advantage: Fast opening speeds keep traffic moving while reducing the risk of unauthorized vehicle tailgating.

Access Control and Vehicle Entry Devices

Commercial Barrier Arm Gates

Barrier arms consist of a motorized boom arm that rises to control vehicle access. While barrier arms do not provide perimeter physical security on their own, they serve as dedicated vehicle entry and access metering devices.

• Best for: Guard shacks, employee parking lots, toll plazas, and commercial logistics checkpoints.
• Space requirement: Minimal footprint, requiring pad space for the operator cabinet and overhead arm clearance.
• Operational advantage: Engineered for continuous duty, running high cycle volumes without mechanical fatigue.

Commercial Gate Performance Comparison

Gate Category	Clear Span Suitability	Ground Track Required?	Primary Wear Components	Space Profile
Commercial Swing	Standard to wide openings	No	Hinge pins, operator arm linkages	Deep swing radius inside/outside
Commercial Slide	Wide to extra-wide openings	Yes (Embedded track)	V-groove wheels, guide bearings	Lateral run along fence line
Cantilever Slide	Medium to wide openings	No (Suspended)	Roller trucks, counterbalance posts	Extended lateral run for counterbalance
Vertical Lift	Medium to wide openings	No	Counterbalance cables, tower guides	Vertical overhead clearance
Vertical Pivot	Standard to medium openings	No	Pivot springs, hinge assemblies	Vertical arc clearance at pivot post
Bi-Folding Speed	Compact to medium openings	No	Folding linkages, hinge assemblies	Compact swing footprint

Engineering for Duty Cycles and Thermal Expansion

Two primary physical factors cause commercial gate operators to fail prematurely: incorrect duty cycle ratings and thermal expansion.

Thermal Dynamics and Track Alignment

In regions with wide temperature swings, technicians at All Star Gate Repair Santa Clarita observe that metal frames and continuous ground tracks expand and contract significantly. Steel tracks can shift slightly out of alignment when exposed to extreme heat, potentially causing wheel bind and excessive motor amp draw.

For these environments, cantilever systems or properly anchored track systems with expansion joints prevent binding. Hydraulic fluid viscosity in heavy-duty swing operators also shifts in extreme temperatures, requiring continuous-duty operators with thermostatic controls or specialized fluid ratings.

Matching the Operator to Daily Cycle Volume

Residential operators are designed for low daily cycle volumes. Commercial environments require continuous-duty commercial operators from manufacturers like DoorKing (DKS), LiftMaster, and FAAC that can manage frequent open-and-close sequences.

• Light Commercial: Properties with modest traffic volume often use standard electro-mechanical gear-driven motors.
• High-Frequency Industrial: Distribution centers and manufacturing plants require oil-bath gearboxes or industrial hydraulic operators designed to dissipate heat continuously.
• Continuous Access: High-volume commercial properties combine heavy structural gates with continuous-duty barrier arms for individual vehicle logging.

Access Control and Safety Standards (UL 325)

Commercial installations should comply with relevant safety standards, such as UL 325 guidelines. Automated commercial gate systems incorporate monitored safety entrapment protection devices to help prevent injury and structural damage.

Monitored Safety Hardware

• Photo-Electric Eyes: Monitored infrared beams positioned across the drive aisle to halt gate motion when a vehicle or pedestrian breaks the line of sight.
• Inductive Ground Loops: Wire loops cut into the asphalt or concrete that detect the metallic mass of vehicles to handle auto-opening (free exit), safety reverse, and shadow sensing.
• Contact Sensing Edges: Pressure-sensitive edges mounted to the leading and trailing edges of moving gate panels that immediately stop and reverse the motor upon physical contact.

Enterprise Access Control Integration

Commercial systems regularly integrate access hardware to track entry logs and manage site traffic:

• Long-Range RFID and Transponders: Hands-free access for company fleet vehicles and delivery trucks.
• Commercial Intercom and Video Terminals: IP-based telephone entry units that allow front desk personnel to verify visitor credentials remotely.
• Wicket Doors and Pedestrian Portals: To keep pedestrians away from heavy motorized vehicle gates, facilities integrate dedicated pedestrian gates or wicket doors built directly into the perimeter fence line.

Custom Architectural and Industrial Gate Options

Commercial perimeters protect a wide variety of properties, including distribution warehouses, regional airports, ports, schools, kindergartens, and municipal car parks. Depending on security requirements, industrial gate panels can be customized with:

• Solid Aluminum or Steel Infill Panels: Blocks line of sight completely to hide valuable yard inventory.
• Ventilated Louver Panels: Provides visual security while allowing air to flow through, reducing wind resistance on wide swing and slide frames.
• Security Viewing Windows: Acrylic or wire-mesh inspection ports that allow security personnel to verify approaching vehicles before opening the perimeter.

Frequently Asked Questions

What is the difference between a commercial cantilever gate and a slide gate?

A standard slide gate uses bottom wheels that ride directly on an embedded ground track. A cantilever gate is counterbalanced and suspended entirely above the ground using internal roller assemblies. Cantilever systems do not require tracks across the driveway, making them ideal for uneven ground, dirt roads, or areas with ground debris.

Which commercial gate type provides the highest security?

Reinforced steel cantilever slide gates and vertical lift gates offer strong physical security against unauthorized entry. When built with heavy structural steel, anti-climb mesh, and high-holding-force locking pins, they create a physical barrier that resists forced entry attempts far better than standard swing or barrier arm systems.

How often do automated commercial gates require maintenance?

Commercial gates running under frequent duty cycles should receive routine professional preventative maintenance, a practice recommended by All Star Gate Repair Santa Clarita. Regular service includes lubricating roller bearings and hinges, testing safety reverse sensors, inspecting track alignment, checking hydraulic fluid levels, and verifying chain or belt tension on the operator.

Sources

1. Gate Automation Market Research Report 2034 – marketintelo.com (2034)
2. U.S. Gates Market Size And Share | Industry Report, 2030 – grandviewresearch.com (2030)
3. Powered Gates Market Research Report 2034 – dataintelo.com (2034)
4. Commercial Gate Access Control Systems: The Complete 2026 … – swiftlane.com (2026)
5. Gates for Houses Trends: 2025 Smart & Secure Designs – accio.com (2025)

Frequently Asked Questions

How do I calculate the counterbalance space required for a commercial cantilever gate?

A commercial cantilever gate typically requires an additional 40% to 50% of the clear opening width along the fence line to accommodate the counterbalance tail. The specialists at All Star Gate Repair Santa Clarita can assess your property layout during an on-site consultation to confirm whether your perimeter has adequate lateral storage space.

How do automated commercial gates maintain operation during a power outage?

Commercial gate systems rely on integrated DC battery backups, emergency key releases, or solar-compatible charging units to ensure uninterrupted operation. High-traffic and critical infrastructure facilities frequently connect their continuous-duty operators to backup generators to prevent freight bottlenecks and maintain perimeter security.

How effective are rapid bi-folding gates at preventing vehicle tailgating?

Bi-folding speed gates operate up to three times faster than standard slide or swing gates, closing the opening in as little as four to eight seconds. This rapid cycle time drastically shortens the open window between authorized entries, effectively preventing unauthorized vehicles from tailgating into secure yards.
