Electric Gate Installation Permit – Pass City Codes Fast

Installing a motorized driveway gate adds security and convenience to your property, but connecting a moving barrier to electrical power requires compliance with local building and safety regulations. Securing an electric gate installation permit ensures your entry system is structurally sound, wired safely, and compliant with local municipal codes before operation.

Permit guidelines and fee schedules vary across different cities and unincorporated county zones. Skipping the permit process can lead to costly issues, such as being required to excavate driveways to verify conduit trench depth, modifying entryways to meet street setback rules, or retrofitting emergency access hardware for the local fire department. Working with a licensed gate contractor such as All Star Gate Repair Santa Clarita helps keep the paperwork organized and the inspection process moving smoothly.^[5]

Do I Need a Building and Electrical Permit for an Automatic Gate?

Powered gates commonly require both building and electrical permits, depending on the jurisdiction. While minor repairs like replacing a worn roller or swapping out a hinge generally do not require permits, installing a brand-new automated gate system commonly involves municipal review for both structural and electrical work.^[1]

Project Scope	Building Permit	Electrical Permit	Typical Inspection Focus
Minor Mechanical Repair (Hinges, Track Realignment)	No	No	None required
Direct Motor Replacement (Existing Wiring Unchanged)	No	Varies by jurisdiction	Safety standard compliance, proper grounding
New Motorized Gate System (New Footings & Wiring)	Commonly Required	Commonly Required	Footing depth, post height, conduit depth, emergency access

Structural and Zoning Department Oversight

Zoning departments focus on where the gate sits relative to property lines and public roads. If concrete footings are poured for posts or masonry pillars are constructed, the building department will review foundation depth and structural engineering to verify stability under wind and load conditions. Local zoning codes govern exact placement, maximum height, and sightline clearances near the driveway apron.

Dedicated Electrical Circuits and Trenching

Connecting a commercial-grade gate operator requires a dedicated branch circuit from an electrical panel. Electrical inspectors verify that:^[2]

• The circuit breaker is correctly sized for the operator’s motor load.
• Conduit runs are buried at the required depth according to applicable electrical codes.
• Wiring splices are housed in approved, weatherproof junction boxes.
• The system has an adequate equipment grounding conductor and local disconnect switch.

UL 325 and ASTM F2200 Safety Standards

UL 325 and ASTM F2200 are relevant gate safety standards that inspectors and jurisdictions may reference during review and inspection.

The Fire-Access and Trenching Trap: Setback and Access Codes

Permit complications frequently arise from underground conduit specifications and emergency service override requirements.

Fire Agency Access and Emergency Overrides

Gate permits may be required in some fire access contexts to ensure emergency personnel have unimpeded entry. For instance, fire districts such as the Golder Ranch Fire District require dedicated gate permits for any installation that crosses an access route.^[3]

Depending on local regulations, fire agencies may require specific emergency entry provisions before signing off on an installation:

• Knox Key Switch or Knox Box: A standardized key switch keyed to the local emergency response master key.
• Optical Strobe Sensor: A sensor that detects the flashing strobe lights of an approaching emergency vehicle.
• Radio Receivers: A system that allows emergency personnel to trigger the gate using emergency vehicle radios.
• Manual Release Capability: A mechanical release that allows personnel to open the gate during a power outage.

Conduit Trench Depth Standards

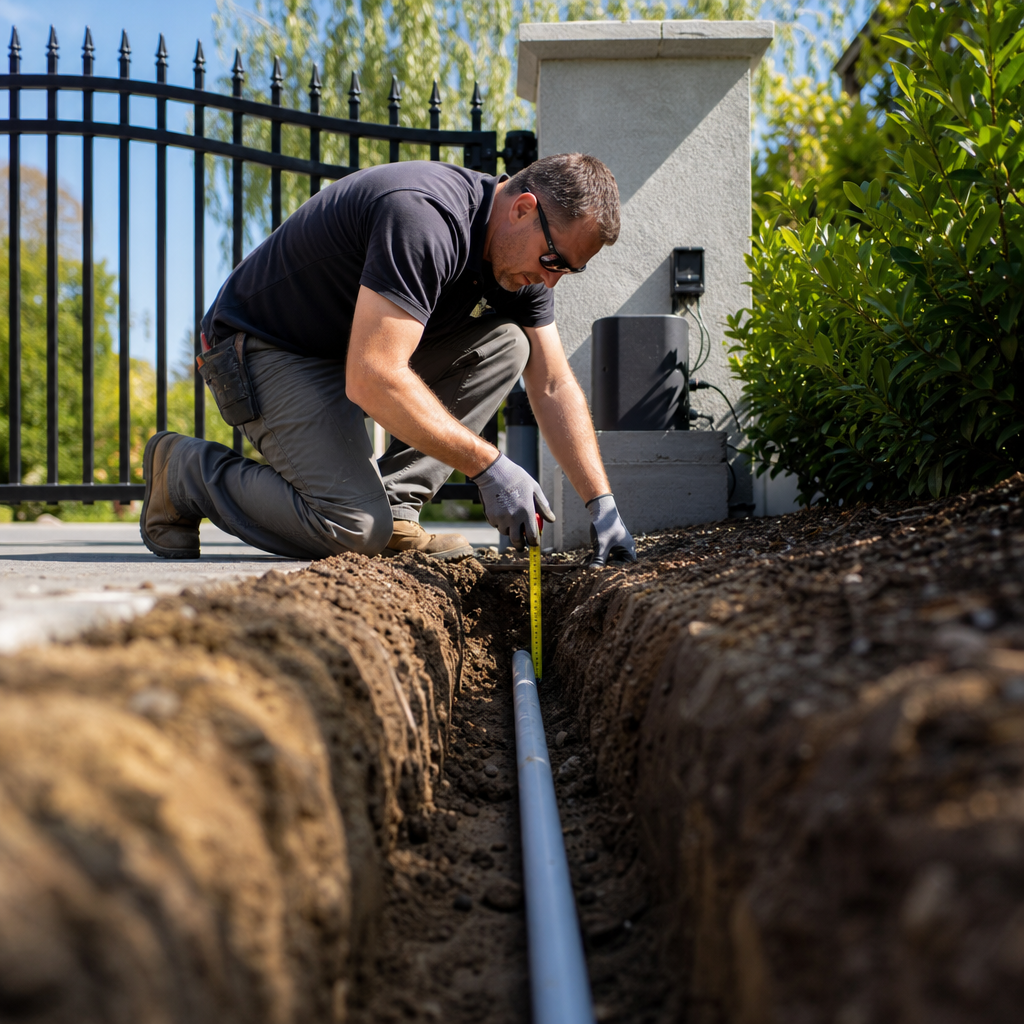

Inspectors routinely perform a trench inspection before contractors backfill dirt. As technicians at All Star Gate Repair Santa Clarita note, electrical codes establish required burial depths for conduit carrying electrical lines depending on the installation type and site conditions. If low-voltage communication lines share the trench, proper physical separation must be maintained to prevent electrical interference.

Vehicle Setback Guidelines

Planning departments enforce driveway setback rules to prevent traffic congestion. If a gate is placed too close to a public street, vehicles waiting for the gate to open can obstruct traffic lanes. Local setback requirements vary by jurisdiction to ensure sufficient clearance for vehicles to pull entirely off the roadway.

HOA Guidelines vs. City Building Permits

Approval from a Homeowners Association (HOA) architectural review committee does not substitute for a municipal building permit. HOAs review aesthetic details such as gate style, paint color, and design patterns, but do not inspect structural footings, electrical trenching, or fire code compliance. Property owners must ensure compliance with both HOA rules and municipal permit requirements.

What Does an Electric Gate Installation Permit and Setup Cost?

Permit fees and overall costs depend on the local municipality’s fee schedule, the property’s jurisdiction, and the extent of electrical and structural work required.

Stage / Component	Estimated Cost Range	Permit and Code Considerations
Municipal Permit Fees (Building + Electrical)	Varies by jurisdiction (e.g., $250 – $750 typical estimate)	Set by local city or county building department fee schedules.
Site Plan & Electrical Schematic Preparation	Varies by provider (e.g., $150 – $400 typical estimate)	May be required for permit submittal showing property lines and setbacks.
Fire Department Access Device (Knox Switch / Strobe)	Varies by equipment (e.g., $350 – $900 typical estimate)	Required in certain jurisdictions and emergency vehicle access routes.
Complete Turnkey Automated Gate Installation	Varies by project scope (e.g., $4,500 – $14,000+ typical estimate)	Includes gate, operator, concrete footings, trenching, wiring, and inspections.

Frequently Asked Questions About Gate Permits

Do I need a building permit to install an electric driveway gate?

Powered gates commonly require both building and electrical permits, depending on local regulations, because they involve permanent structural posts, footings, and setback considerations relative to property lines and public roads.^[4]

What electrical permits are required for motorized gate openers?

Installing a motorized gate opener commonly requires an electrical permit depending on the jurisdiction, covering branch circuit wiring to the operator, underground conduit trenching, and related electrical connections.

Can a licensed gate contractor pull permits on my behalf?

Yes. A licensed and insured contractor, such as All Star Gate Repair Santa Clarita, can prepare site plans, submit permit applications, pull permits on your behalf, and coordinate directly with municipal inspectors for rough-in and final sign-offs.

What happens if an automated gate is installed without a permit?

Installing without a permit can result in stop-work orders, municipal fines, and delays during property sales. In some cases, local authorities may require retroactive inspections, excavation of trenches, or removal of unapproved structures.

How long does it take for a city to approve an electric gate permit?

Permit approval times vary by jurisdiction depending on municipal workload, plan-check procedures, and whether fire department review is required.

Sources

1. New Streamlined Process to Legalize Unpermitted Security Gates … – sf.gov (2026)
2. Electrical Permits By Year – stlouis-mo.gov (2025)
3. Sacramento Metropolitan Fire District – metrofire.ca.gov – metrofire.ca.gov (2022)
4. [PDF] CHAPTER 6 – Los Alamos County – losalamosnm.gov
5. [PDF] Automatic Electric Gates – Golder Ranch Fire District – grfdaz.gov

Frequently Asked Questions

Does installing a solar-powered electric gate eliminate the need for a permit?

While solar systems may eliminate the need for a standard high-voltage electrical permit, you will still typically need a building permit for structural footings, zoning setbacks, and emergency vehicle access compliance. All Star Gate Repair Santa Clarita can evaluate your project scope to ensure your solar or hardwired setup meets all local municipal guidelines.

What specific documents are required when submitting an electric gate installation permit application?

Most building departments require a detailed plot plan showing property lines and driveway setback measurements, structural drawings for gate posts or pillars, and an electrical schematic showing the power source and disconnect switch. Working with a licensed contractor like All Star Gate Repair Santa Clarita ensures your plan submittals include the necessary engineering and safety details to pass municipal plan checks.

What on-site inspections are conducted before a permitted electric gate gets final sign-off?

Cities typically conduct an open-trench inspection to verify conduit burial depth and post hole dimensions before concrete and backfill are poured. A final inspection then tests the operational safety devices, UL 325 entrapment sensors, electrical grounding, and required fire department emergency overrides.
